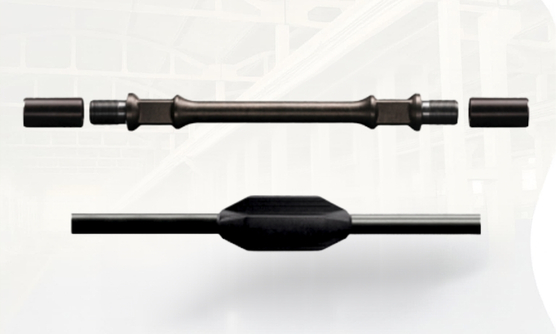

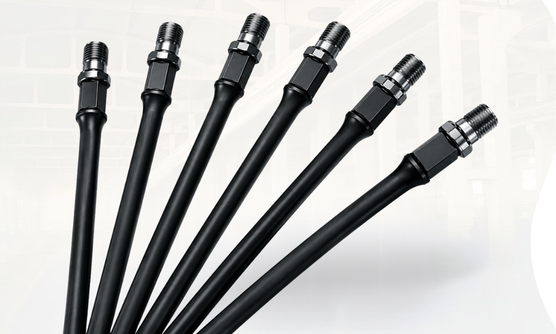

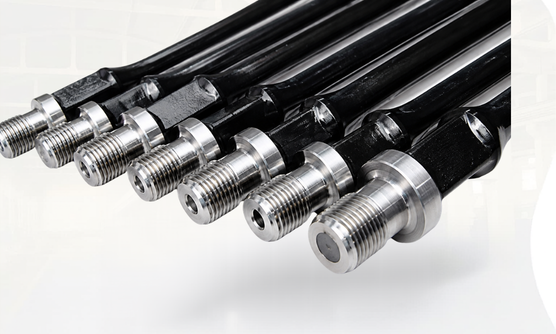

Manufactured as per API 11B with strict dimensional control and heat treatment, ensuring predictable field performance
Window Magic's manufacturing process for sucker rod, pony rod, couplings and sub surface pumps is a fully integrated, precision-driven system designed to ensure strength, durability, and consistent field performance. Controlled hot forging establishes core mechanical strength and structural integrity, followed by advanced heat treatment to refine grain structure, enhance fatigue resistance, and ensure uniform material properties. Dimensional accuracy is achieved through precision stretching, while surface preparation optimizes coating adhesion and long-term durability. Threads are produced using advanced CNC thread-cutting technology, machining the thread profile with exceptional accuracy and consistency to ensure reliable fitment, superior connection performance, and a reduced risk of thread failure under demanding oilfield conditions.
Manufacturing continues with high-precision CNC threading to ensure exact geometry and reliable connection performance, with every thread profile verified using calibrated gauges to meet API standards. Each sucker rod undergoes rigorous quality control, including dimensional inspection, thread verification, and magnetic particle testing to detect surface and subsurface defects. Advanced coating solutions are applied to enhance wear resistance and corrosion protection, particularly in challenging environments such as PCP systems and deviated wells. Final marking ensures full traceability and grade identification, while controlled storage and packaging preserve product integrity. Through disciplined in-house control and strict quality standards, Window Magic delivers high-performance sucker rods and pony rods engineered to reduce wear, extend service life, and optimize operational efficiency in modern oilfield applications.
Manufactured in compliance with API Spec 11B.
Produced from premium-quality carbon and alloy steel.
Precision forging and thread rolling for accurate dimensions.
Controlled heat treatment for uniform mechanical properties.
Excellent fatigue strength for long service life.
High resistance to wear, corrosion, and cyclic loading.
Precision-machined threads for secure and reliable connections.
100% Magnetic Particle Inspection (MPI) for surface defect detection.
Strict dimensional, hardness, and mechanical property verification.
Complete batch traceability throughout the manufacturing process.
Suitable for shallow, medium, deep, and heavy-duty pumping applications.
Designed to deliver reliable performance and reduced operating costs.
Grade C/K: Suitable for shallow to medium-depth wells under conventional operating conditions.
D-Series (DC, DA, HA): Designed for higher tensile strength and moderate corrosion resistance. Used in deeper wells and higher load applications.
H-Series (HA, HS, HY): High-strength rods for deep wells, heavy loads, and severe operating conditions.
| Grade | Chemistry | Yield min ksi (Mpa) |
Tensile min ksi (Mpa) |
Tensile max ksi (Mpa) |
Elongation min % |
ROA min % |
Internal Color |
|---|---|---|---|---|---|---|---|
| C Grade | Economical carbon steel for standard pumping applications and conventional well conditions. | 60 (414) | 90 (621) | 115 (793) | 13 | 40 | White |
| K Grade | Alloy steel offering improved toughness and enhanced resistance to wear and corrosion. | 60 (414) | 90 (621) | 115 (793) | 13 | 40 | Blue |
| DC Grade | High-strength grade designed for higher loads, deeper wells, and demanding operating conditions. | 85 (586) | 115 (793) | 140 (965) | 10 | 40 | Brown |
| DA Grade | High-strength grade designed for higher loads, deeper wells, and demanding operating conditions. | 85 (586) | 115 (793) | 140 (965) | 10 | 40 | Yellow |
| DS Grade | High-strength grade designed for higher loads, deeper wells, and demanding operating conditions. | 85 (586) | 115 (793) | 140 (965) | 10 | 40 | Orange |
| HA Grade (Alloy) | High-strength alloy steel providing excellent fatigue resistance and reliable performance under heavy cyclic loading. | 115 (793) | 140 (965) | 155 (1069) | 8 | 30 | Green |
| HS Grade | Premium alloy steel engineered for severe service, deep wells, and maximum operational reliability. | 115 (793) | 140 (965) | 155 (1069) | 10 | 40 | Purple |
| HY Grade (Case hardened) | Case-hardened steel with a hard wear-resistant surface and tough core for abrasive service conditions. | - | 155 (1069) ref. | - | - | - | Pink |
